Specification

Material: Q235 Steel
Process: Electrostatic Spraying
Color: Black
Style: Modern
Assembly Required: No
Power Supply: Wired
Control Mode: Access Control System/Key
Locking Method: Collision/Power-Off
Unlocking Time: ＞3S
Working Voltage: 24V
Power: 60W
Working Current: 2.5A
Protection Level: IP44
Working Temperature: -20~60℃/-4~140℉
Power Cord Length: 5m/16.4ft
Installation Holes Spacing: 50mm/2in

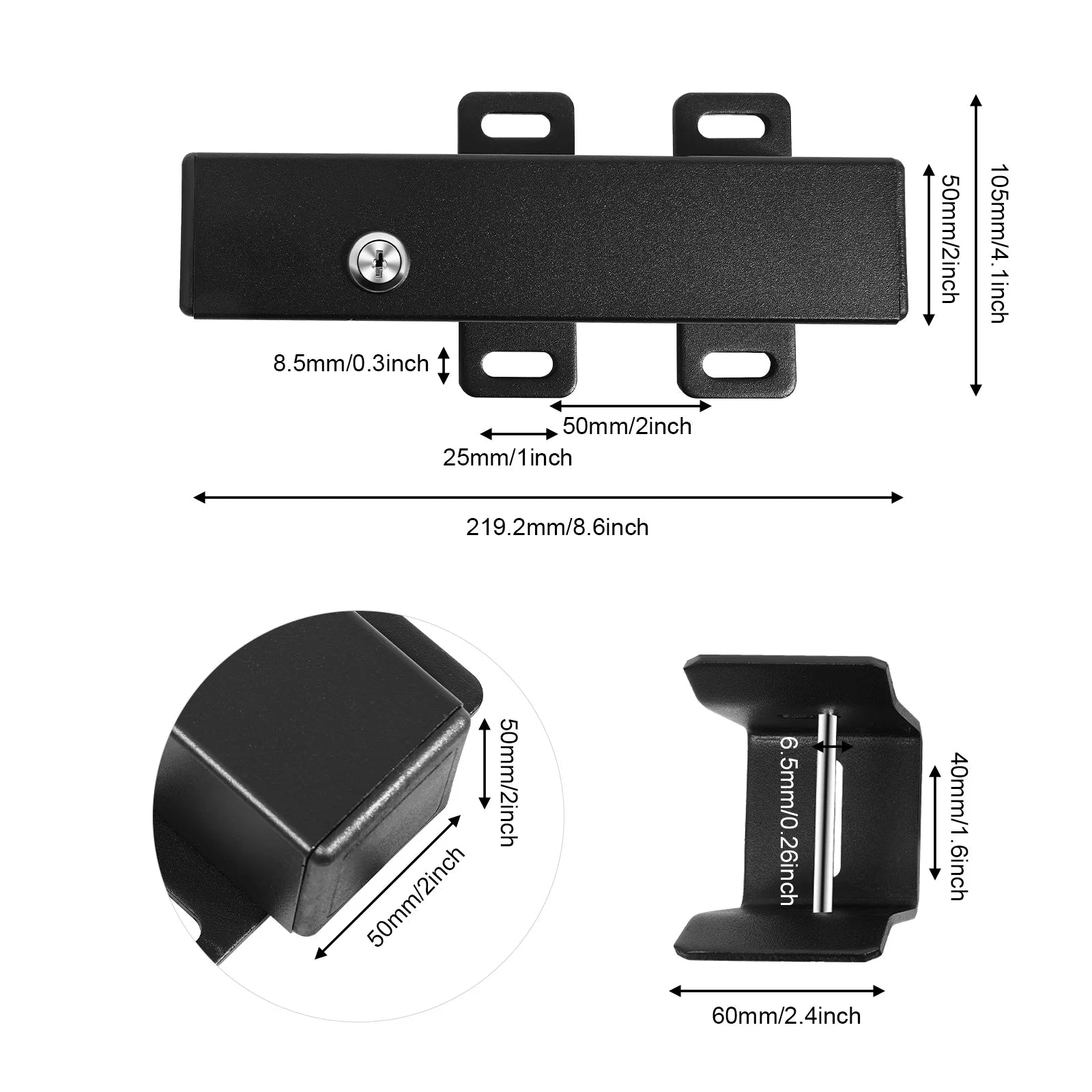

Lock Size: 105*219.2*50mm/4.1*8.6*2in
Package Size: 33*11*9cm/12.99*4.33*3.54in
Gross Weight: 1.98kg/4.37lbs
Net Weight: 1.7kg/3.75lbs

Key Features

Sturdy & Reliable: Long-last Q235 steel, after electrostatic spraying, is corrosion-resistant, rust-resistant, has high hardness, is not easily deformed or broken, and can maintain excellent performance for a long time.

High Security: This product uses a three-tooth slot and thickened buckle lock tongue to ensure a tight fit and higher safety of the door lock, effectively preventing prying and accidental opening.

2 Unlocking Methods: You can unlock it through your access control system or with two spare keys, which can effectively prevent power outages or access failure.

Thoughtful Design: This product can lock with minimal force, effectively preventing forgetting to lock and bringing great convenience to your use. The reduced force exerted on the gate and gate lock also means less wear and tear, leading to a longer-lasting system and a lower likelihood of damage to your gate.

Good Protection Effect: This product has an IP44 protection level and can be used in environments ranging from -4 ℉ to 140 ℉, providing you with all-weather security protection.

Wide Adaptability: This product is compatible with BI-WWHYYR-2729, and HG-WWHYYR-4770, as well as most third-party door openers with double doors, single swing doors, and control boards that have electric lock terminals (DC 24V output signal), making it easy to operate.

Easy Clean-Up: The surface of the product is smooth and the structure is simple. You can easily use a soft cloth to wipe it clean.

Easy to Install: The simple structure and detailed manual allow you to quickly complete the installation and put it into use.

Details

Long Power Cord: The 16.4-foot power cord allows you to easily install this product on the door you need.

Smooth Edges: The smooth edges enhance the beauty of the product and better care for your skin when installing and cleaning it

Application

It can be widely used in villas, gardens, courtyards, residential areas, commercial streets, parks, museums, schools, libraries, and other places.

Package Included

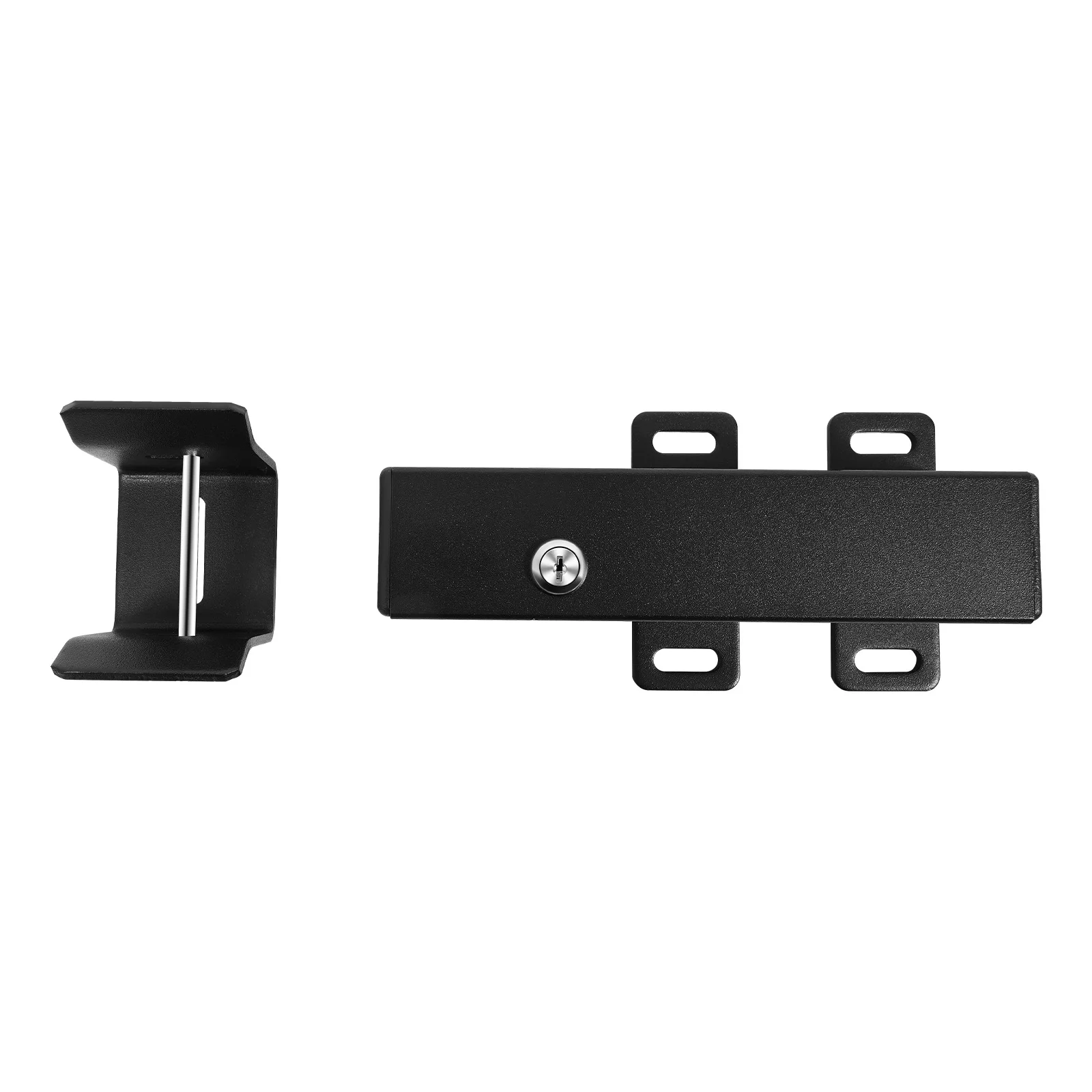

1 * Electric Gate Lock
1 * Lock Receiver
2 * Keys
1 * English Manual

Notes

1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2.Please carefully check the product size before purchasing.
3.This product is not compatible with DC12V door-opening systems.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
