ANNKE 5MP Smart Light Video Surveillance Cameras 5MP Bullet Cameras Audio Recording Outdoor Weatherproof Security Cameras
ANNKE 5MP Smart Light Video Surveillance Cameras 5MP Bullet Cameras Audio Recording Outdoor Weatherproof Security Cameras
Couldn't load pickup availability
SPECIFICATIONS
Lens (mm): 2.8mm
Model Number: CR1CV
Sensor: CMOS
Style: Bullet Camera
Note: This camera can only be used with our DW81KD-V6 and DW61LD-V6, does not support third-party DVR
-High quality imaging with 3K, 2960 × 1665 resolution
-2.8 mm fixed focal lens@F1.2
-High quality audio with audio over coaxial cable, built-in mic

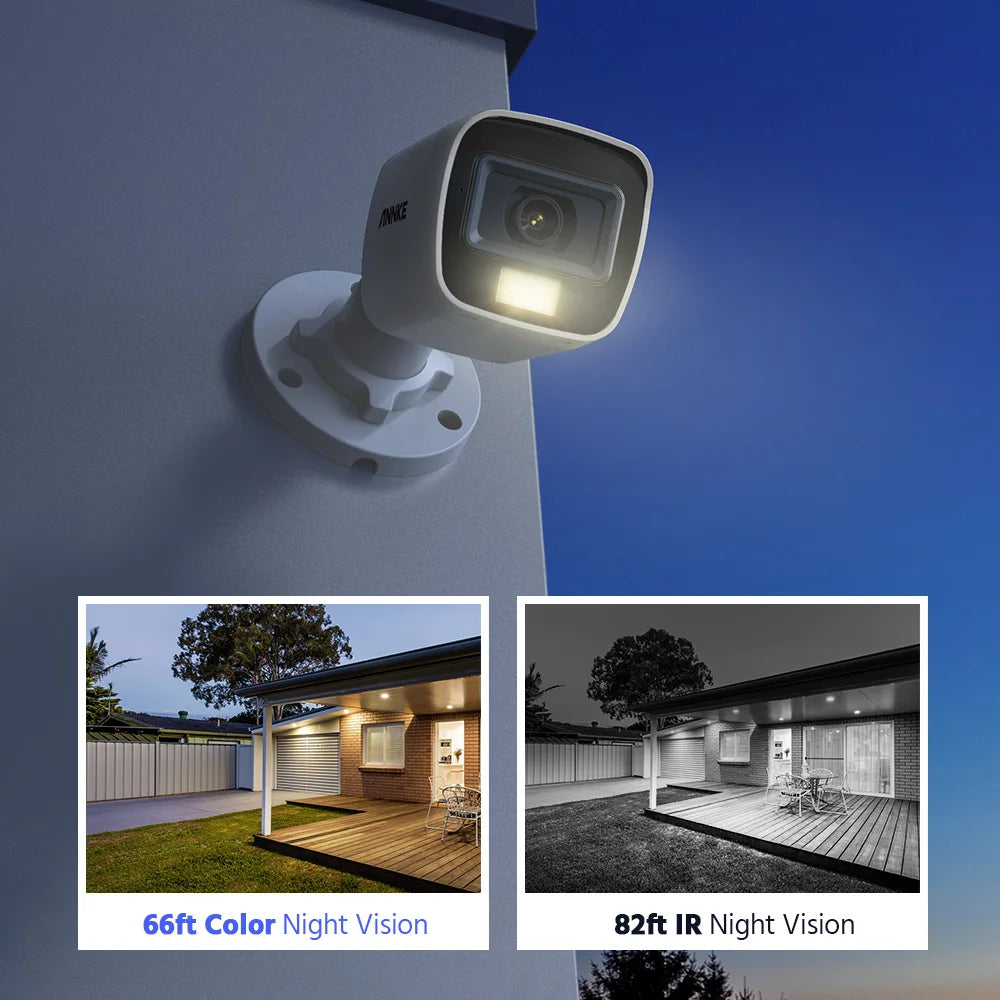

-Up to 25 m IR distance for bright night imaging
-Up to 20 m white light distance for bright night imaging
-One port for four switchable signals (TVI/AHD/CVI/CVBS）
-Water and dust resistant (IP67)
Analog HD Camera | ||
Camera |
Image sensor |
3K CMOS Image sensor |
Video Resolution |
2960 (H) × 1665 (V)(16:9) |
|
Signal System |
PAL/NTSC |
|
Frame Rate |
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps |
|
Lens |
2.8mm |
|
Min.Illumination |
Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
Angle of View |
Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129° |
|
Supplement Light type |
1 white Light & 2 EXIR |
|
Supplement Light Range |
IR : Up to 25 m, white Light : Up to 20 m |
|
Supplement Light Mode |
IR light works normally, and it switches to white light when human or vehicle are detected at night. |
|
Wide Dynamic Range |
Digital WDR |
|
Audio |
Built-in mic |
|
IR Cut Filter |
Yes |
|
Video Output |
BNC, switchable TVI/AHD/CVI/CVBS |
|
General |
Housing |
Plastic |
Color |
White |
|
Operating Power |
12 VDC ± 25% |
|
Consumption |
Max. 2.9 W |
|
Operating Temperature |
-40 °F – 140 °F /-40 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L x W x H) |
138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3") |
|
Weight |
Approx. 155 g (0.34 lb.) |
|
